New
Here you will find new products that have been released within the last 24 months.
| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 45 | 99.2 |
| Working area-reach [mm|in]: | 2118 | 83.4 |
| Mounting position: | Floor, Ceiling |
|
Increased precision through the use of a reinforced gearbox between the base frame and rotating column (axis 1) with increased torque, increased tilting rigidity and reduced backlash
|
|

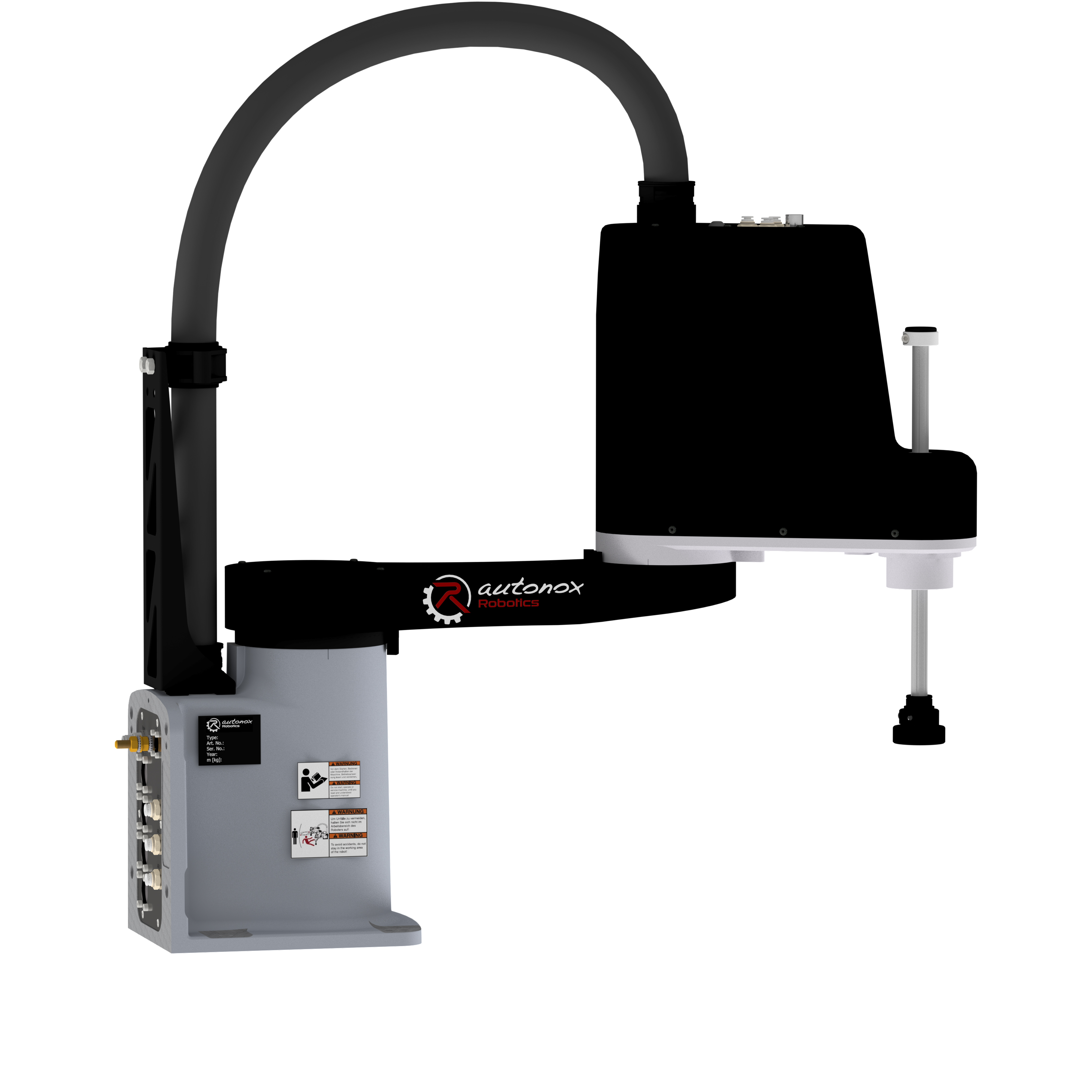

| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 2 |
| Nominal payload [kg|lbs]: | 1 | 2.2 |
| Working area-diameter [mm|in]: | 1350 | 53.1 |
| Working height outside [mm|in]: | 250 | 9.8 |

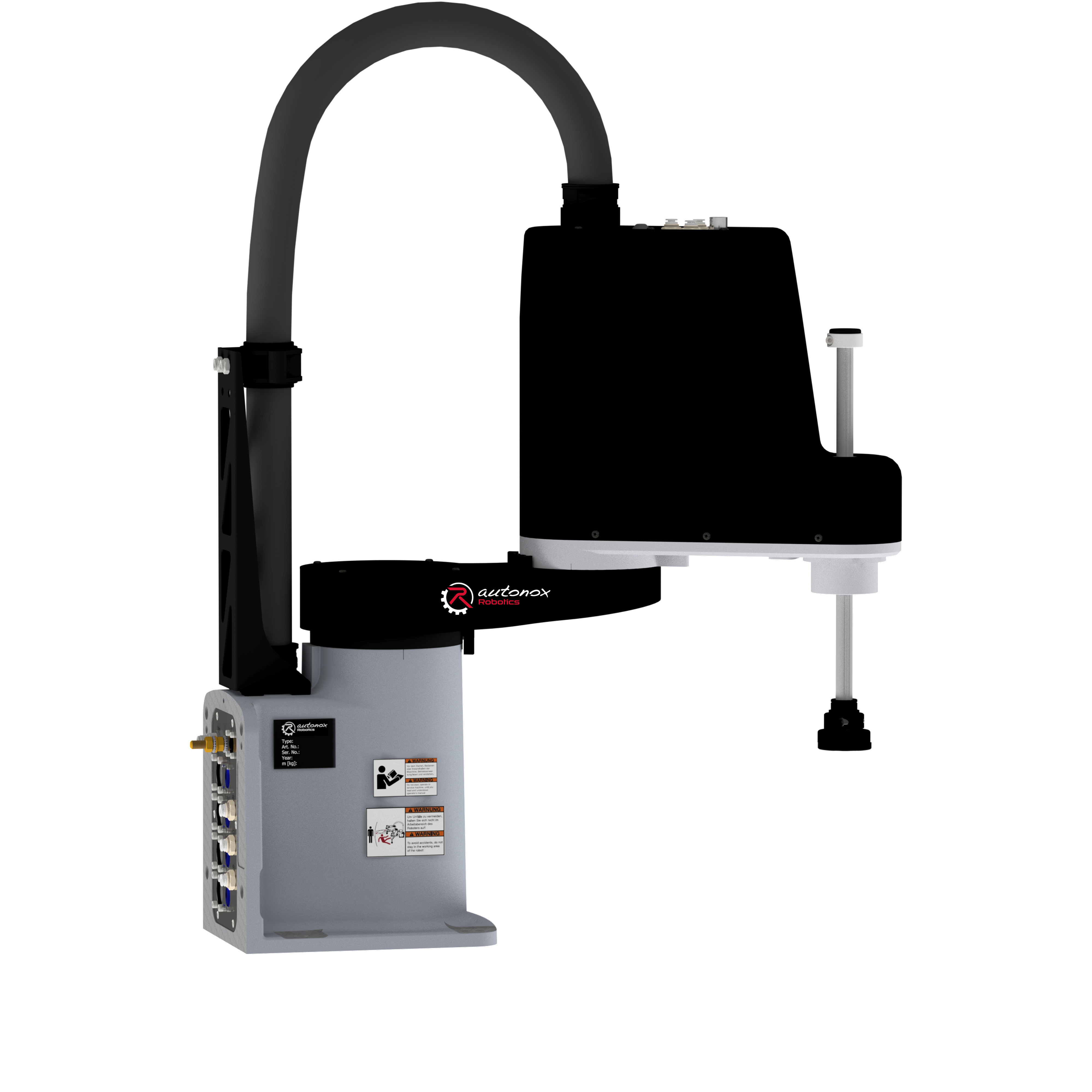

| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 2 |
| Nominal payload [kg|lbs]: | 1 | 2.2 |
| Working area-diameter [mm|in]: | 1050 | 41.3 |
| Working height outside [mm|in]: | 250 | 9.8 |
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 150 | 330.7 |
| Working area-reach [mm|in]: | 2407 | 94.8 |
| Mounting position: | Floor, Ceiling |
|
The use of secondary encoders is prepared for axes 1-6. This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. For patent law reasons not available and usable in the USA!
|
|
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 150 | 330.7 |
| Working area-reach [mm|in]: | 2390 | 94.1 |
| Mounting position: | Floor, Ceiling |
|
This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air.
|
|
| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 2 |
| Nominal payload [kg|lbs]: | 1 | 2.2 |
| Working area-diameter [mm|in]: | 1750 | 68.9 |
| Working height outside [mm|in]: | 200 | 7.9 |
| Field of application: | Hygienic ′HHD′ |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 6 | 13.2 |
| Working area-diameter [mm|in]: | 1000 | 39.4 |
| Working height outside [mm|in]: | 250 | 9.8 |

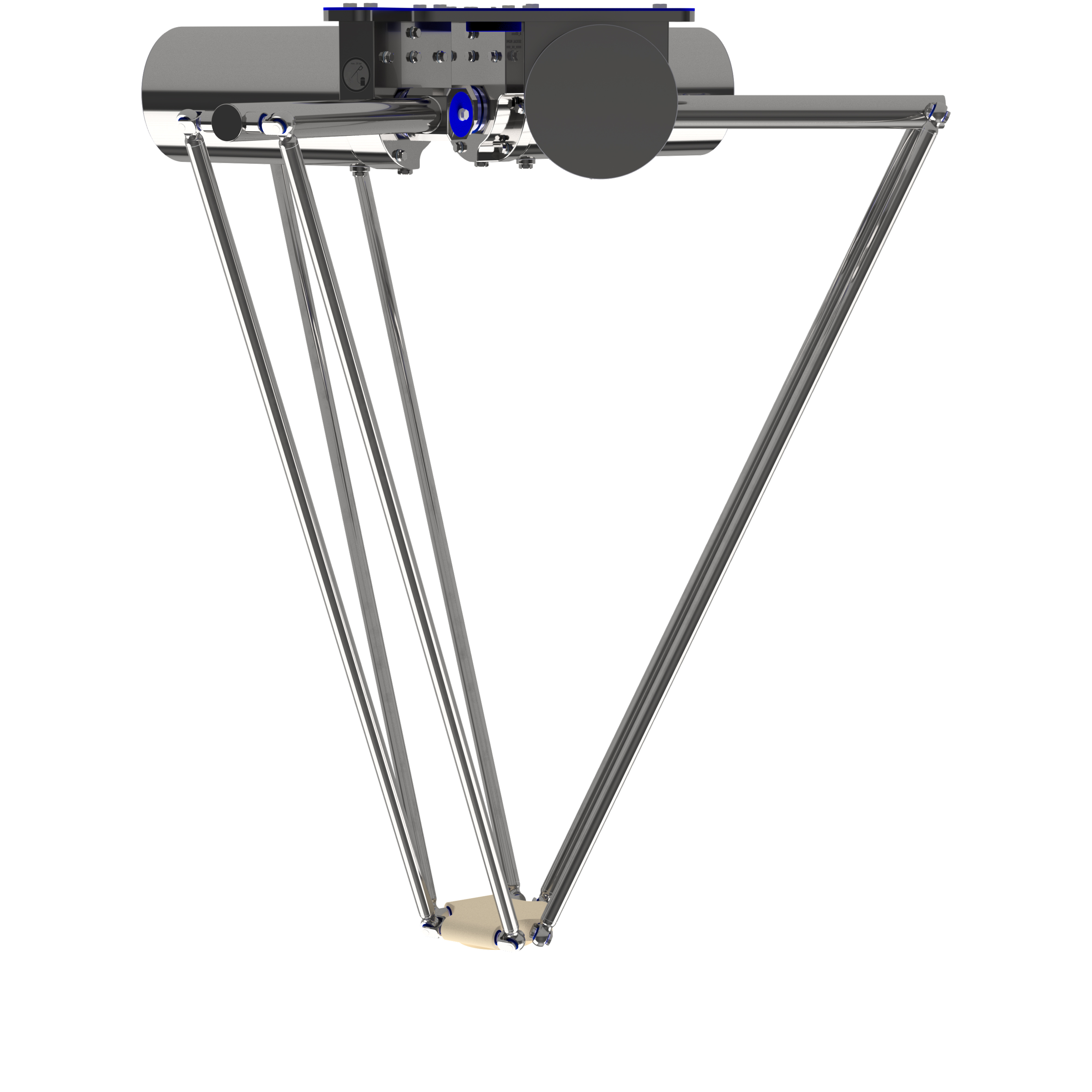

| Field of application: | Hygienic ′HHD′ |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 6 | 13.2 |
| Working area-diameter [mm|in]: | 1200 | 47.2 |
| Working height outside [mm|in]: | 330 | 13.0 |
| Field of application: | Hygienic ′HND′ |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 0 |
| Nominal payload [kg|lbs]: | 3 | 6.6 |
| Working area-diameter [mm|in]: | 1200 | 47.2 |
| Working height outside [mm|in]: | 200 | 7.9 |
| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 1 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 60 | 132.3 |
| Working area-reach [mm|in]: | 810 | 31.9 |
| Mounting position: | Wall |

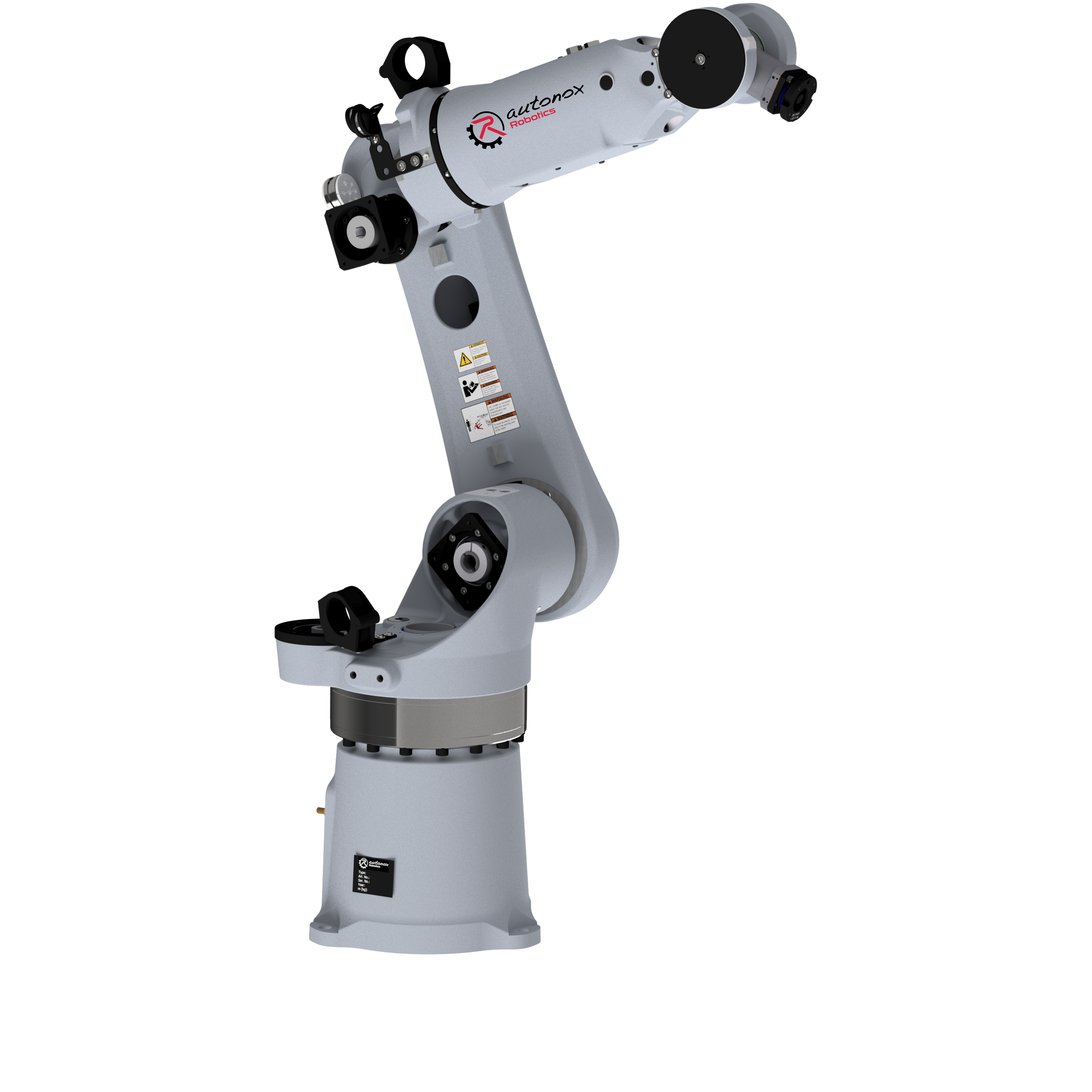

| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 6 | 13.2 |
| Working area-reach [mm|in]: | 1215 | 47.8 |
| Mounting position: | Floor, Ceiling, Wall, Angle |
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 2 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 8 | 17.6 |
| Working area-reach [mm|in]: | 1155 | 45.5 |
| Mounting position: | Floor, Ceiling, Wall, Angle |

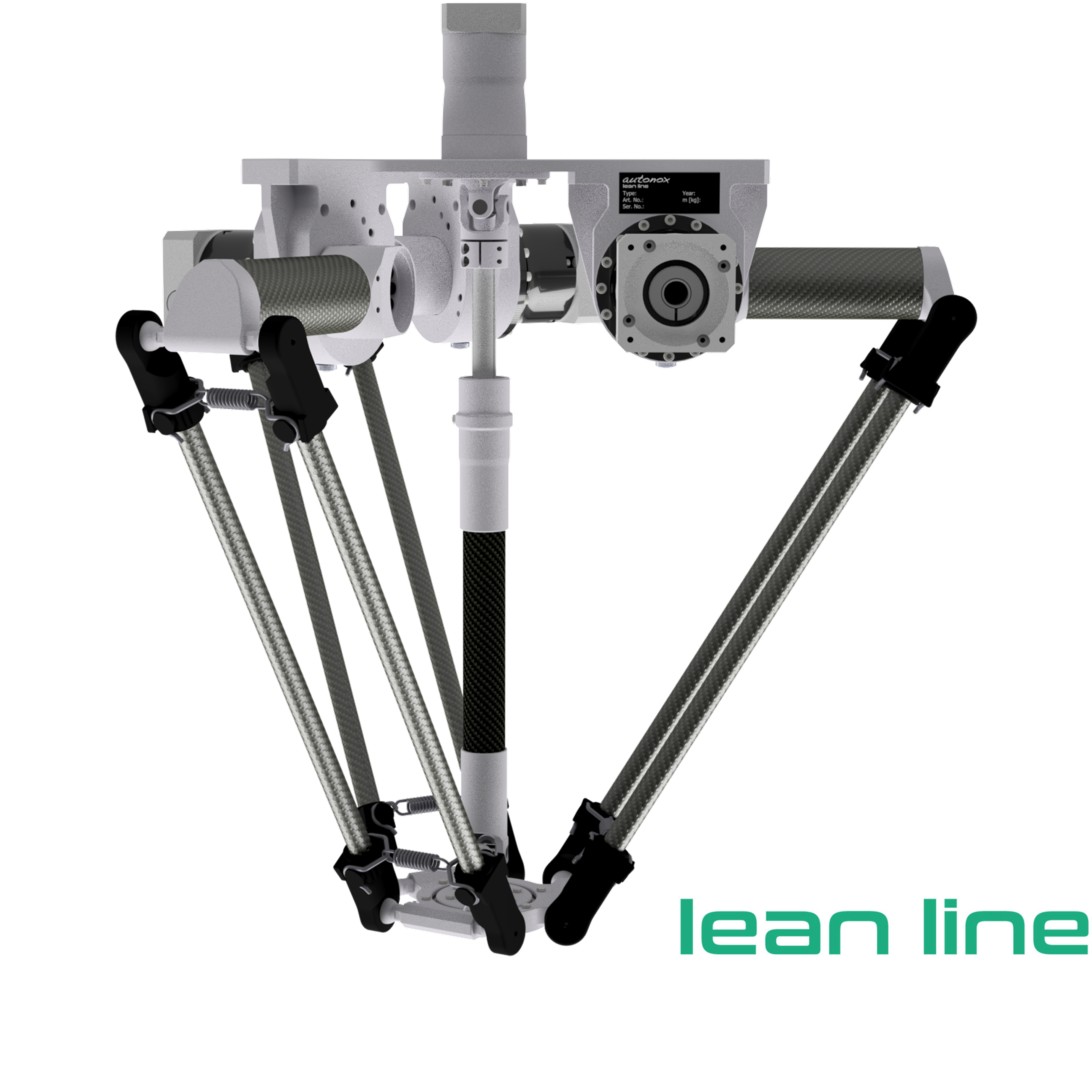

| Field of application: | Hygienic ′HND′ |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 6 | 13.2 |
| Working area-reach [mm|in]: | 700 | 27.6 |
| Working height [mm|in]: | 150 | 5.9 |
| Mounting position: | Floor, (Ceiling), Wall |

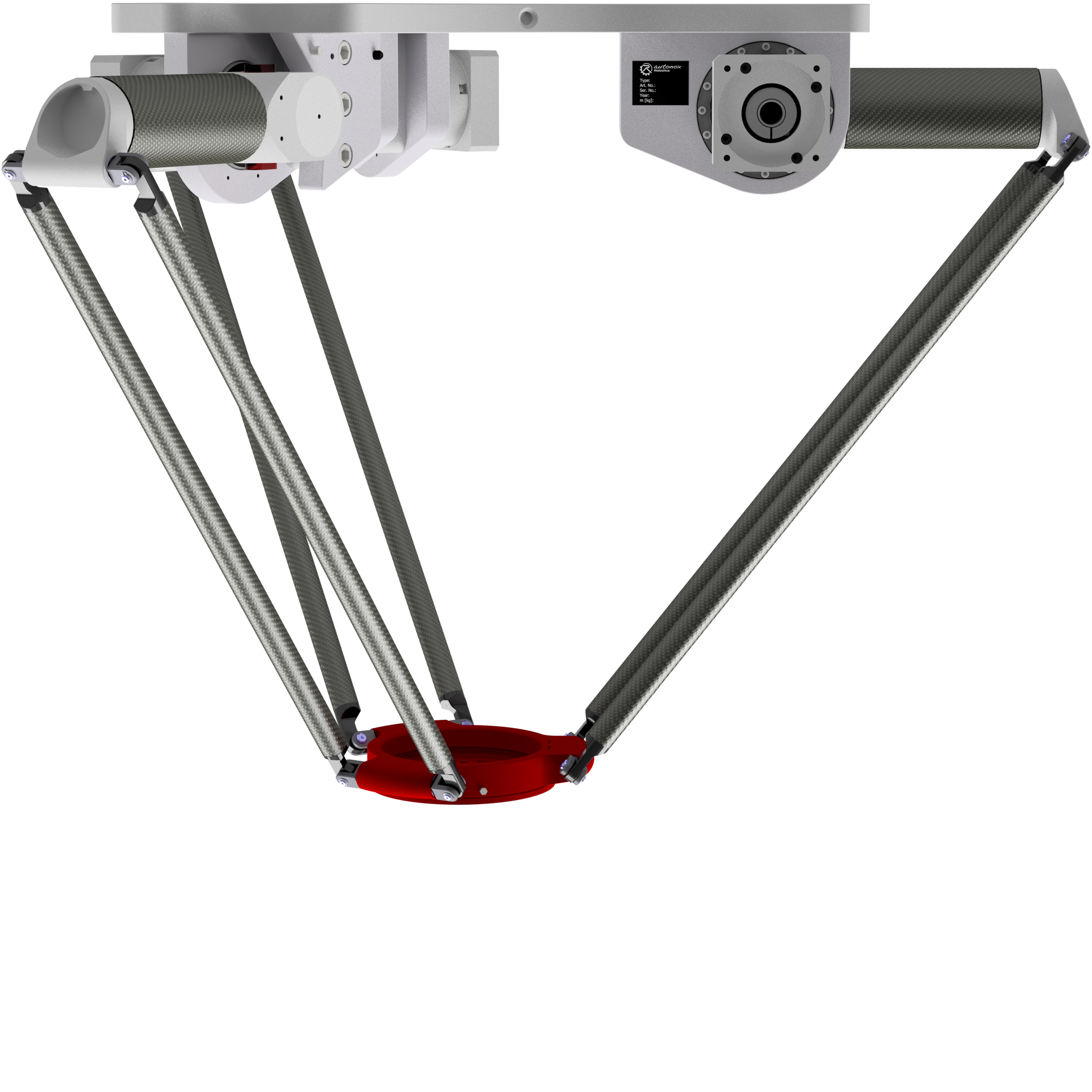

| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 2 |
| Nominal payload [kg|lbs]: | 20 | 44.1 |
| Working area-reach [mm|in]: | 2000 | 78.7 |
| Mounting position: | Floor, Ceiling |
| Field of application: | Hygienic ′HND′ |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 6 | 13.2 |
| Working area-reach [mm|in]: | 800 | 31.5 |
| Working height [mm|in]: | 150 | 5.9 |
| Mounting position: | Floor, (Ceiling), Wall |

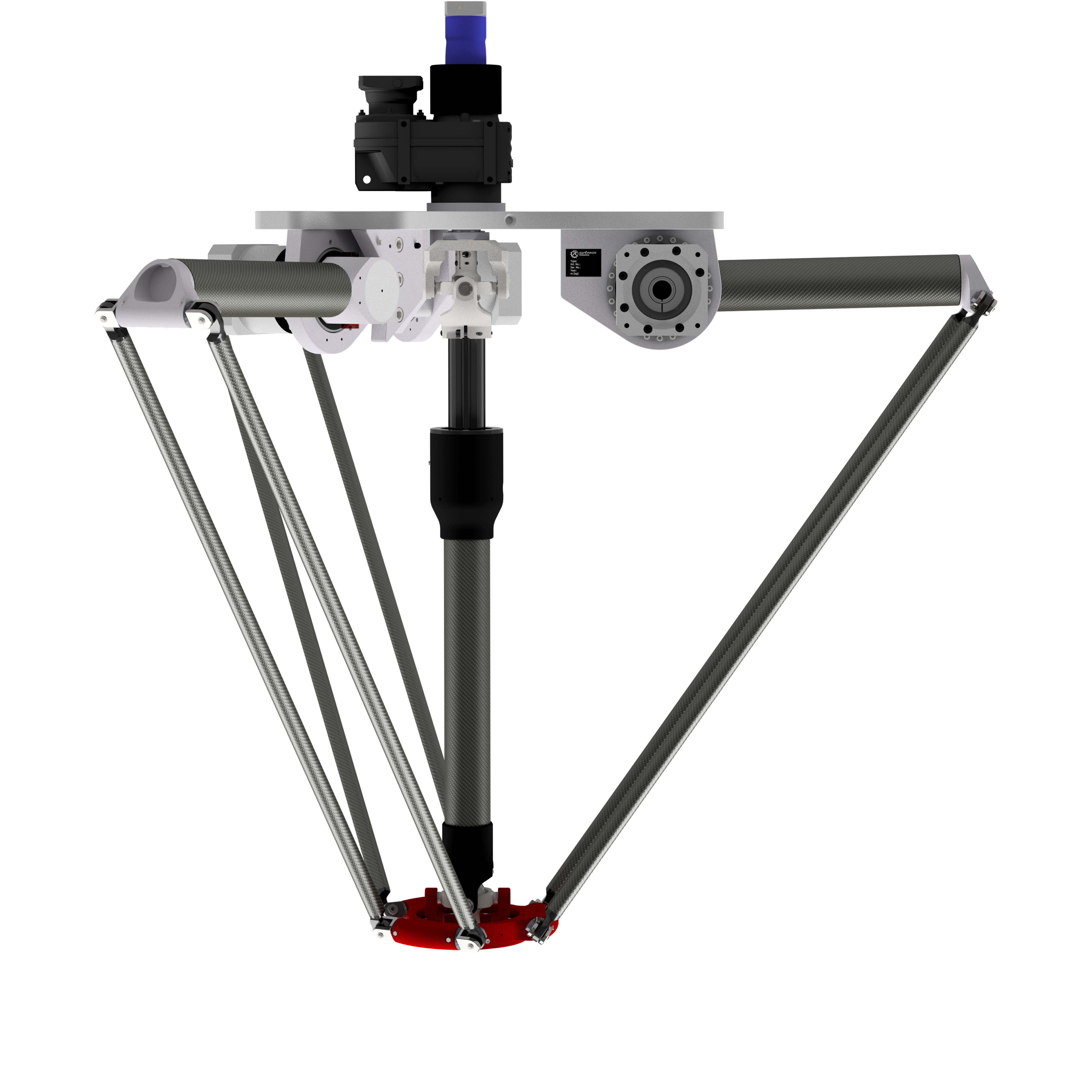

| Field of application: | Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 50 | 110.2 |
| Working area-diameter [mm|in]: | 1600 | 63.0 |
| Working height outside [mm|in]: | 400 | 15.7 |
| Number of the tool actuation (telescopic shaft(s)): | 1 |
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Working area-reach [mm|in]: | 1665 | 65.6 |
| Mounting position: | Floor, Ceiling, Wall, Angle |
|
Lower base frame than the standard (compact, rigid, inexpensive). This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air.
|
|
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Working area-reach [mm|in]: | 1665 | 65.6 |
| Mounting position: | Floor, Ceiling, Wall, Angle |
|
This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air.
|
|
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Working area-reach [mm|in]: | 1704 | 67.1 |
| Mounting position: | Floor, Ceiling, Wall, Angle |
|
The use of secondary encoders is prepared for axes 1-6. This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. For patent law reasons not available and usable in the USA!
|
|
| Field of application: | CNC Robotics, Standard (not hygienic) |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Working area-reach [mm|in]: | 2267 | 89.3 |
| Mounting position: | Floor, Ceiling |
|
The use of secondary encoders is prepared for axes 1-6. For patent law reasons not available and usable in the USA!
|
|
