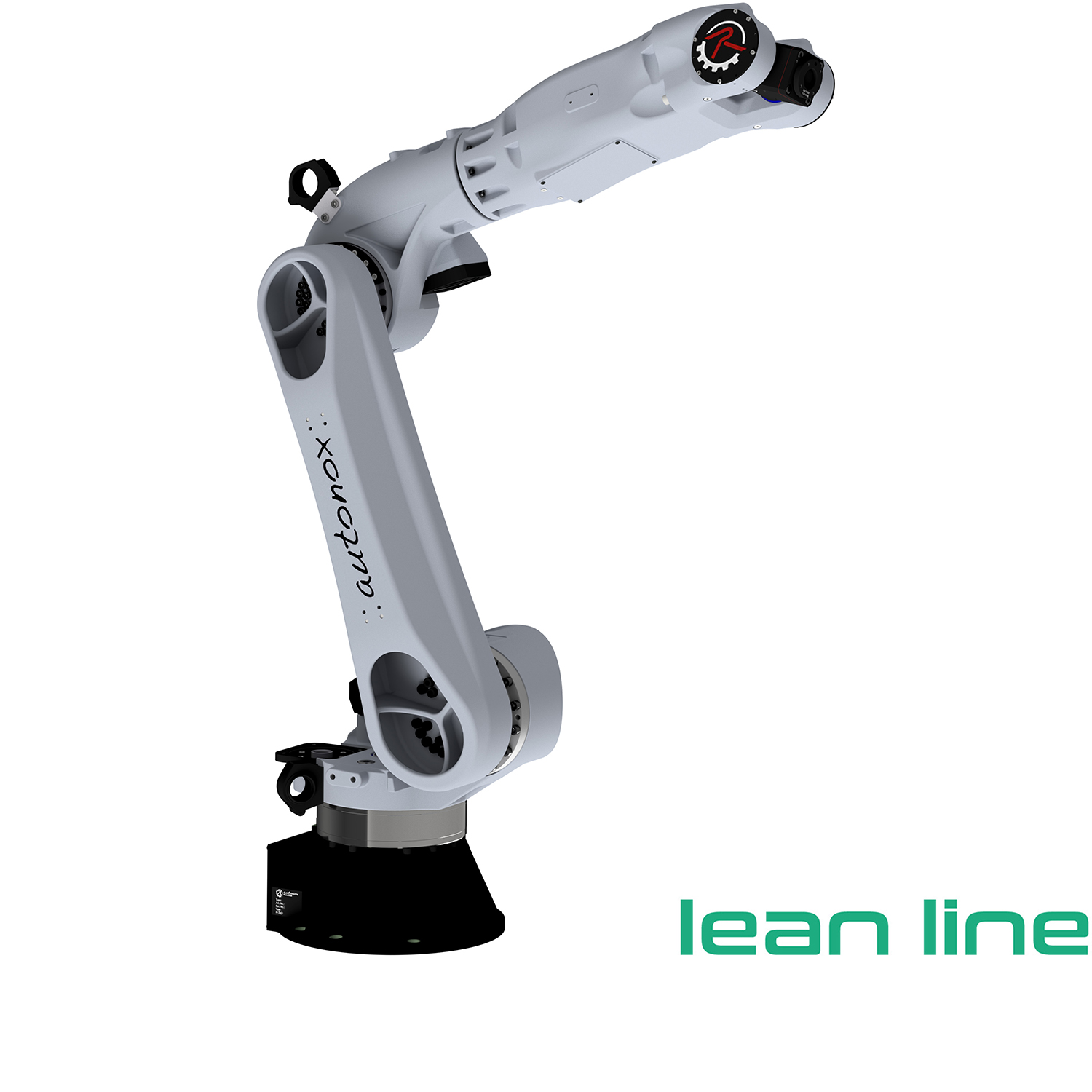

ARTICULATED articc6-1803-20kg
Article number:
AT_00014
Delivery time: max. 14-16 weeks after order confirmation (For larger quantities please contact us. The delivery time specification also applies to spare parts.)
Description
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Scope of delivery
Required accessories
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Scope of delivery
- Robot mechanics incl. gearbox
- Free installation of drive technology provided (including incoming goods inspection)
- Multi-hour, logged test run as final quality inspection
- Threaded protection caps
- Transport and packing instructions
Required accessories
- Set of parts for installing the drive technology. This set consists of, for example, a servo motor adapter, servo motor cable, transmission input pinion, plug board (usually on the base frame).
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 8LSA46.DB030D900-3 |
| M2 | 8LSA55.DB045D300-3 |
| M3 | 8LSA44.DB060D300-3 |
| M4 | 8LSA36.DB030D900-3 |
| M5 | 8LSAA3.D9045D900-3 |
| M6 | 8LSAA3.D9045D900-3 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | AM8053-3KH1-0000 |
| M2 | AM8061-3MH1-1001 |
| M3 | AM8052-3LH1-0000 |
| M4 | AM8041-2DH1-0000 |
| M5 | AM8032-3EH1-0000 |
| M6 | AM8031-3DH1-0000 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | MS2N06-D0BRN-CMUK2-NNNNN-NN |
| M2 | MS2N06-D0BRN-CMUK2-NNNNN-NN |
| M3 | MS2N06-C0BTN-CMUL1-NNNNN-NN |
| M4 | MS2N04-C0BNN-CMDK1-NNNNN-NN |
| M5 | MS2N04-C0BNN-CMDK1-NNNNN-NN |
| M6 | MS2N04-B0BTN-CMDK1-NNNNN-NN |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | DMS2-100-0100-30-B15MP2-Q000-0 |
| M2 | DMS2-142-0125-30-B15MP2-Q000-0 |
| M3 | DMS2-100-0060-60-B15MP2-Q000-0 |
| M4 | DMS2-091-0035-30-B15MP2-Q000-0 |
| M5 | DMS2-070-0024-60-B15MP2-Q000-1 |
| M6 | DMS2-070-0024-60-B15MP2-Q000-1 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | CMP71S/BP/PK/AK0H/SB1 |
| M2 | CMP71M/BP/PK/AK0H/SB1 |
| M3 | CMP71S/BP/PK/AK0H/SB1 |
| M4 | CMP63S/BK/PK/AK0H/SB1 |
| M5 | CMP50M/BK/PK/AK0H/SE1 |
| M6 | CMP50S/BK/PK/AK0H/SE1 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 1FK2106-3AF11-1MB0 |
| M2 | 1FK2206-4AF10-1MB0 |
| M3 | 1FK2206-2AF10-1MB0 |
| M4 | 1FK2205-2AF11-0MB0 |
| M5 | 1FT7036-5AK71-1CB2 |
| M6 | 1FT7036-5AK71-1CB2 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
| Field of application: | Standard (not hygienic) |
|---|---|
| Kinematics: | Serial |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 20 | 44.1 |
| Supplementary load on the arm [kg|lbs]: | 10 | 22.0 |
| Working area-reach [mm|in]: | 1803 | 71.0 |
| Lubricants of the bearings: | Synthetic |
| Lubricants of the gearboxes: | Synthetic |
| Cleaning: | No high pressure |
| Protection class: | IP64 |
| Ambient temperature [°C|°F]: | 0 to +40 | +32 to +104 |
| Relative humidity level [%]: | 95 (free of condensation) |
| Mounting position: | Floor, Ceiling, Wall, Angle |
| Robot weight without drive engineering (esp. drive) [kg|lbs]: | 185 | 407.9 |
-
Signed in / logged in you will receive further documents:
With the download you accept the general terms of sale and supply, privacy policy and terms of use.
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Article number: MT_BGR00108149
Description
This calibration set contains all the calibration devices required for calibrating the robot mechanics as well as a handy protection case with a special inlay. The case is ideal for storing and transporting these devices.
Scope of delivery
Calibration set consisting of:
This calibration set contains all the calibration devices required for calibrating the robot mechanics as well as a handy protection case with a special inlay. The case is ideal for storing and transporting these devices.
Scope of delivery
Calibration set consisting of:
- Calibration device MT_BGR00104269
- Calibration device MT_BGR00020965
- Calibration device MT_BGR00104270
- Calibration device MT_BGR00104271
- Calibration device MT_BGR00104272
- Calibration device MT_BGR00020307
- Protection case with inlay
Article number: MT_BGR00020307
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
- Calibration device
Article number: MT_BGR00104269
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00020965
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104270
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104271
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104272
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: VKS_00005
Description
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
- Carrier box incl. assembling/transport aid
Article number: VKS_00023
Description
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
- Carrier box incl. assembling/transport aid
Description and scope of delivery
Description
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Scope of delivery
Required accessories
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Scope of delivery
- Robot mechanics incl. gearbox
- Free installation of drive technology provided (including incoming goods inspection)
- Multi-hour, logged test run as final quality inspection
- Threaded protection caps
- Transport and packing instructions
Required accessories
- Set of parts for installing the drive technology. This set consists of, for example, a servo motor adapter, servo motor cable, transmission input pinion, plug board (usually on the base frame).
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
Technical specifications
| Field of application: | Standard (not hygienic) |
|---|---|
| Kinematics: | Serial |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 20 | 44.1 |
| Supplementary load on the arm [kg|lbs]: | 10 | 22.0 |
| Working area-reach [mm|in]: | 1803 | 71.0 |
| Lubricants of the bearings: | Synthetic |
| Lubricants of the gearboxes: | Synthetic |
| Cleaning: | No high pressure |
| Protection class: | IP64 |
| Ambient temperature [°C|°F]: | 0 to +40 | +32 to +104 |
| Relative humidity level [%]: | 95 (free of condensation) |
| Mounting position: | Floor, Ceiling, Wall, Angle |
| Robot weight without drive engineering (esp. drive) [kg|lbs]: | 185 | 407.9 |
Motor selection
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 8LSA46.DB030D900-3 |
| M2 | 8LSA55.DB045D300-3 |
| M3 | 8LSA44.DB060D300-3 |
| M4 | 8LSA36.DB030D900-3 |
| M5 | 8LSAA3.D9045D900-3 |
| M6 | 8LSAA3.D9045D900-3 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | AM8053-3KH1-0000 |
| M2 | AM8061-3MH1-1001 |
| M3 | AM8052-3LH1-0000 |
| M4 | AM8041-2DH1-0000 |
| M5 | AM8032-3EH1-0000 |
| M6 | AM8031-3DH1-0000 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | MS2N06-D0BRN-CMUK2-NNNNN-NN |
| M2 | MS2N06-D0BRN-CMUK2-NNNNN-NN |
| M3 | MS2N06-C0BTN-CMUL1-NNNNN-NN |
| M4 | MS2N04-C0BNN-CMDK1-NNNNN-NN |
| M5 | MS2N04-C0BNN-CMDK1-NNNNN-NN |
| M6 | MS2N04-B0BTN-CMDK1-NNNNN-NN |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | DMS2-100-0100-30-B15MP2-Q000-0 |
| M2 | DMS2-142-0125-30-B15MP2-Q000-0 |
| M3 | DMS2-100-0060-60-B15MP2-Q000-0 |
| M4 | DMS2-091-0035-30-B15MP2-Q000-0 |
| M5 | DMS2-070-0024-60-B15MP2-Q000-1 |
| M6 | DMS2-070-0024-60-B15MP2-Q000-1 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | CMP71S/BP/PK/AK0H/SB1 |
| M2 | CMP71M/BP/PK/AK0H/SB1 |
| M3 | CMP71S/BP/PK/AK0H/SB1 |
| M4 | CMP63S/BK/PK/AK0H/SB1 |
| M5 | CMP50M/BK/PK/AK0H/SE1 |
| M6 | CMP50S/BK/PK/AK0H/SE1 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 1FK2106-3AF11-1MB0 |
| M2 | 1FK2206-4AF10-1MB0 |
| M3 | 1FK2206-2AF10-1MB0 |
| M4 | 1FK2205-2AF11-0MB0 |
| M5 | 1FT7036-5AK71-1CB2 |
| M6 | 1FT7036-5AK71-1CB2 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Download area
-
Signed in / logged in you will receive further documents:
With the download you accept the general terms of sale and supply, privacy policy and terms of use.
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
LINKED Robotics

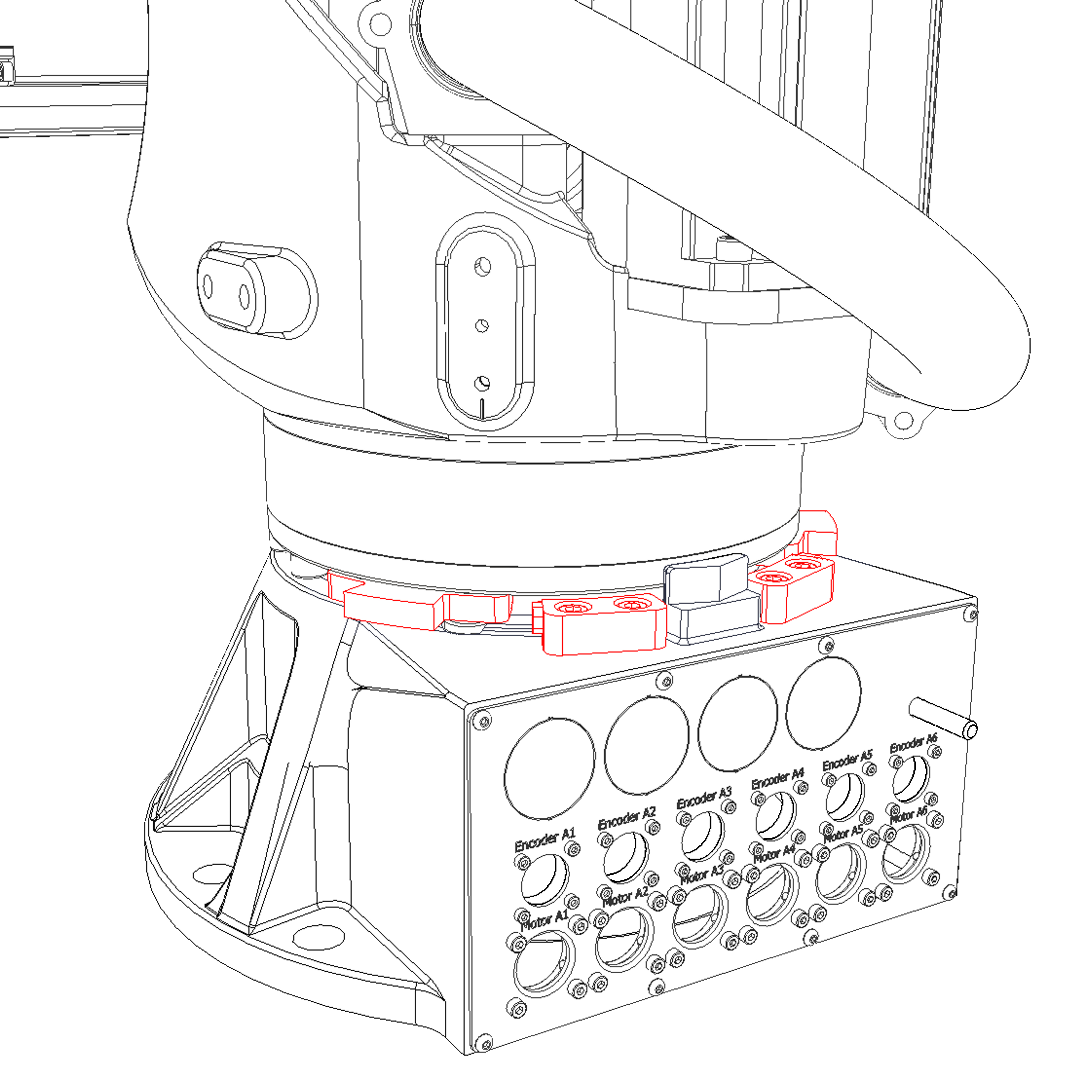

Accessories
Article number: MT_BGR00108149
Description
This calibration set contains all the calibration devices required for calibrating the robot mechanics as well as a handy protection case with a special inlay. The case is ideal for storing and transporting these devices.
Scope of delivery
Calibration set consisting of:
This calibration set contains all the calibration devices required for calibrating the robot mechanics as well as a handy protection case with a special inlay. The case is ideal for storing and transporting these devices.
Scope of delivery
Calibration set consisting of:
- Calibration device MT_BGR00104269
- Calibration device MT_BGR00020965
- Calibration device MT_BGR00104270
- Calibration device MT_BGR00104271
- Calibration device MT_BGR00104272
- Calibration device MT_BGR00020307
- Protection case with inlay
Article number: MT_BGR00020307
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
- Calibration device
Article number: MT_BGR00104269
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00020965
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104270
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104271
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00104272
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: VKS_00005
Description
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
- Carrier box incl. assembling/transport aid
Article number: VKS_00023
Description
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
- Carrier box incl. assembling/transport aid
