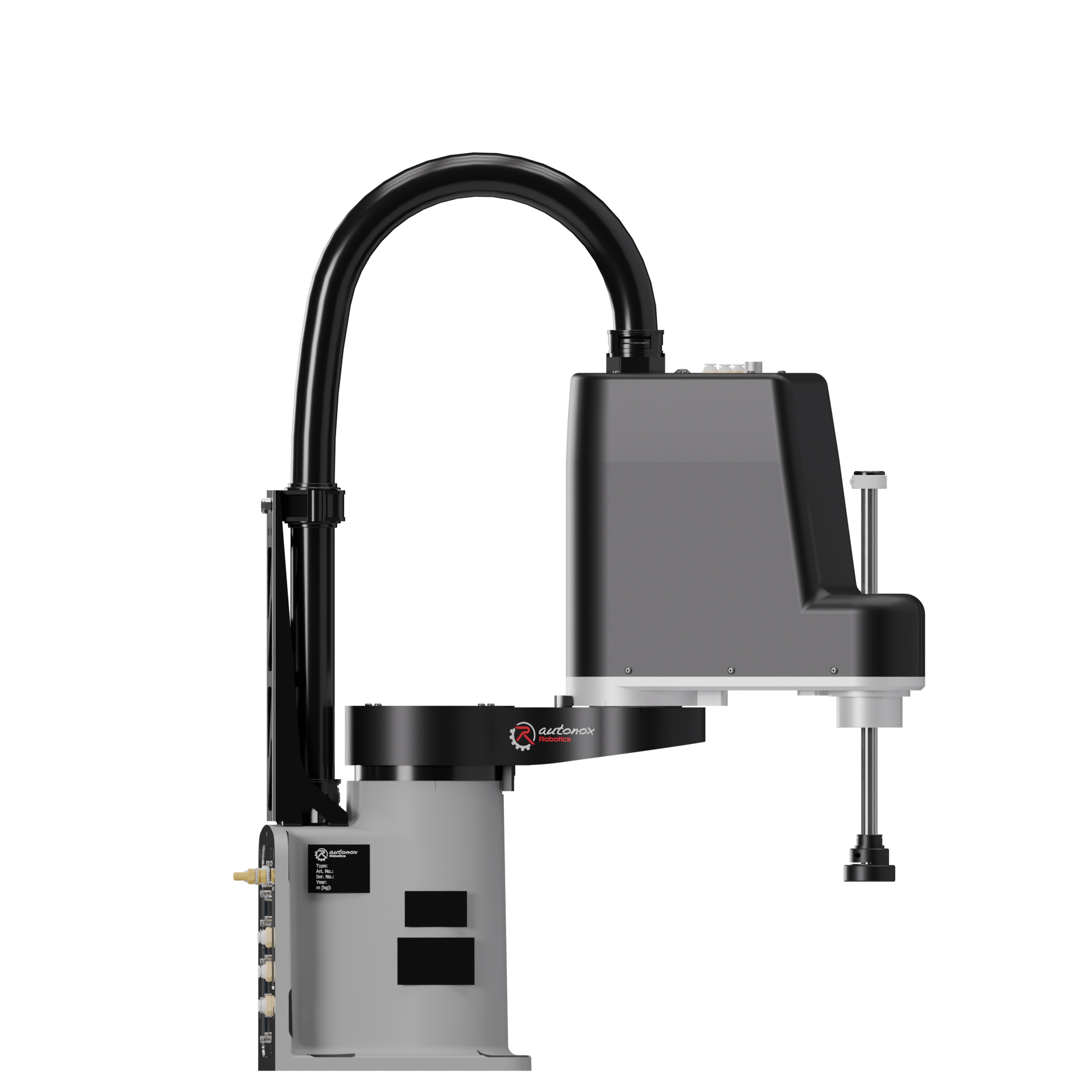

ARTICULATED sCara4-450-1kg
Article number:
AT_00039
Delivery time: max. 14-16 weeks after order confirmation (For larger quantities please contact us. The delivery time specification also applies to spare parts.)
Description
This type of robot is based on the principle of serial kinematics.
All drives and motor cables, except the stationary axis 1, are moved along. The robot has three (3) translational and one (1) rotational degree(s) of freedom.
It is not necessary to select motors for this mechanics. They are already included in the drive technology parts set.
Scope of delivery
Required accessories
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
This type of robot is based on the principle of serial kinematics.
All drives and motor cables, except the stationary axis 1, are moved along. The robot has three (3) translational and one (1) rotational degree(s) of freedom.
It is not necessary to select motors for this mechanics. They are already included in the drive technology parts set.
Scope of delivery
- Robot mechanics incl. gearbox
- Installation of drive technology (including incoming goods inspection)
- Multi-hour, logged test run as final quality inspection
- Threaded protection caps
- Transport and packing instructions
Required accessories
- Set of parts for installing the drive technology. This set consists of, for example, servo motors and adapters, servo motor cable, transmission input pinion, plug board (usually on the base frame) and media supply to the arm.
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
-
Signed in / logged in you will receive further documents:
With the download you accept the general terms of sale and supply, privacy policy and terms of use.
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
| Field of application: | Standard (not hygienic) |
|---|---|
| Kinematics: | Serial |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 1 |
| Nominal payload [kg|lbs]: | 1 | 2.2 |
| Working area-reach [mm|in]: | 450 | 17.7 |
| Working height [mm|in]: | 200 | 7.9 |
| Lubricants of the bearings: | Synthetic |
| Lubricants of the gearboxes: | Synthetic |
| Integrated media supply: | Threefold integrated media supply to the arm (compressed air 8 bar | 116.0 psi / vacuum -1 bar | -14.5 psi / D=6 mm | 0.24 in ; d=4 mm | 0.16 in) |
| Cleaning: | No high pressure |
| Protection class: | IP64 |
| Ambient temperature [°C|°F]: | 0 to +40 | +32 to +104 |
| Relative humidity level [%]: | 95 (free of condensation) |
| Mounting position: | Floor, (Ceiling), Wall |
