ARTICULATED articc.m6-1704-30kg
Article number:
AT_00026-SE01
Delivery time: max. 22-24 weeks after order confirmation (For larger quantities please contact us. The delivery time specification also applies to spare parts.); For patent law reasons not available and usable in the USA!
Description
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Highlight:The use of secondary-encoders is prepared for axes 1-6.
This robot mechanics was developed for applications that require high rigidity, good vibration damping and maximum precision. In the kinematics, axes 2, 3 and 5 are supported on both sides, which increases the rigidity accordingly. This model is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. Media supplies for the end effector can be routed protected inside the robot structure.
Scope of delivery
Required accessories
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Highlight:The use of secondary-encoders is prepared for axes 1-6.
This robot mechanics was developed for applications that require high rigidity, good vibration damping and maximum precision. In the kinematics, axes 2, 3 and 5 are supported on both sides, which increases the rigidity accordingly. This model is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. Media supplies for the end effector can be routed protected inside the robot structure.
Scope of delivery
- Robot mechanics incl. gearbox
- Mounting adapters for secondary-encoders
- Installation of drive technology and the secondary-encoders (to be provided free of charge in each case)
- Multi-hour, logged test run as final quality inspection
- Threaded protection caps
- Transport and packing instructions
Required accessories
- Set of parts for installing the drive technology. This set consists of, for example, a servo motor adapter, servo motor cable, transmission input pinion, plug board (usually on the base frame).
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | AM8053-1KH1-0000 |
| M2 | AM8054-1MH1-0000 |
| M3 | AM8043-1HH1-0000 |
| M4 | AM8032-3EH1-0000 |
| M5 | AM8031-1DH1-0000 |
| M6 | AM8031-1DH1-0000 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | DMS2-142-0125-45-B15MP2-Q000-0 |
| M2 | DMS2-142-0160-45-B15MP2-Q000-0 |
| M3 | DMS2-100-0080-60-B15MP2-Q000-0 |
| M4 | DMS2-070-0024-60-B15MP2-Q000-1 |
| M5 | DMS2-070-0018-60-B15MP2-Q000-0 |
| M6 | DMS2-070-0018-60-B15MP2-Q000-0 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 1FK2206-4AF10-1MB0 |
| M2 | 1FK2106-6AF10-1MB0 |
| M3 | 1FK2105-6AF10-1MB0 |
| M4 | 1FK7033-4CK71-1CB2 |
| M5 | 1FK7032-2AK71-1CB0 |
| M6 | 1FK7032-2AK71-1CB0 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
| Field of application: | Standard (not hygienic), CNC Robotics |
|---|---|
| Kinematics: | Serial |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Supplementary load on the arm [kg|lbs]: | 10 | 22.0 |
| Working area-reach [mm|in]: | 1704 | 67.1 |
| Lubricants of the bearings: | Synthetic |
| Lubricants of the gearboxes: | Synthetic |
| Integrated media supply to the end effector possible: | Yes |
| Cleaning: | No high pressure |
| Protection class: | IP67 |
| Ambient temperature [°C|°F]: | 0 to +40 | +32 to +104 |
| Relative humidity level [%]: | 95 (free of condensation) |
| Mounting position: | Floor, Ceiling, Wall, Angle |
| Robot weight without drive engineering (esp. drive) [kg|lbs]: | 273 | 601.9 |
| Special features: | The use of secondary encoders is prepared for axes 1-6. This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. For patent law reasons not available and usable in the USA! |
-
Signed in / logged in you will receive further documents:
With the download you accept the general terms of sale and supply, privacy policy and terms of use.
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Article number: MT_BGR00020307
Description

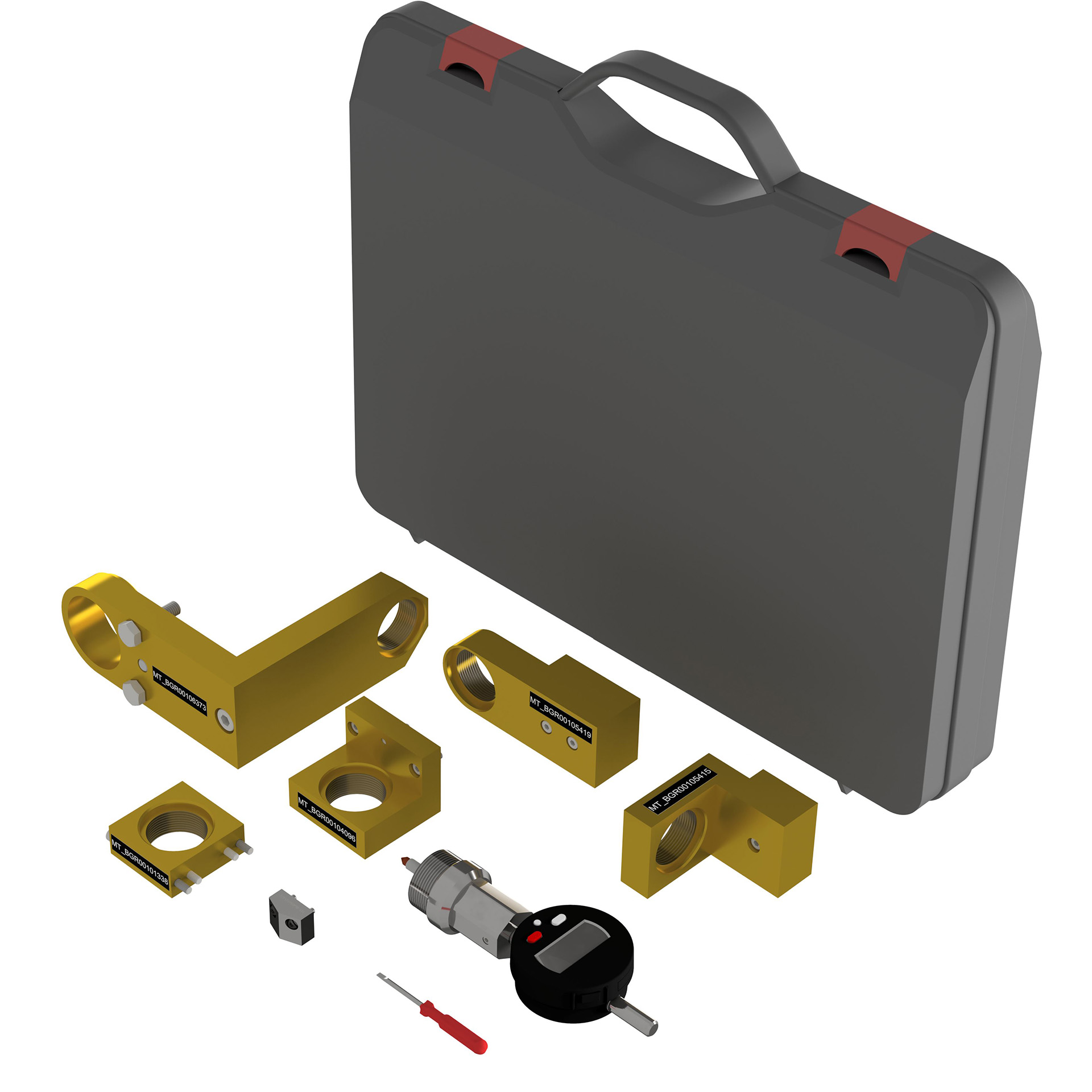

This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
- Calibration device
Article number: MT_BGR00104096
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00101338
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105415
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105419
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105421
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105422
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: VKS_00021
Description
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
- Carrier box incl. assembling/transport aid
Article number: VKS_00022
Description
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
- Carrier box incl. assembling/transport aid
Description and scope of delivery
Description
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Highlight:The use of secondary-encoders is prepared for axes 1-6.
This robot mechanics was developed for applications that require high rigidity, good vibration damping and maximum precision. In the kinematics, axes 2, 3 and 5 are supported on both sides, which increases the rigidity accordingly. This model is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. Media supplies for the end effector can be routed protected inside the robot structure.
Scope of delivery
Required accessories
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
This type of robot is based on the principle of serial kinematics.
All drives and motor cables are moved along. The robot has three (3) translational and three (3) rotational degrees of freedom.
Highlight:The use of secondary-encoders is prepared for axes 1-6.
This robot mechanics was developed for applications that require high rigidity, good vibration damping and maximum precision. In the kinematics, axes 2, 3 and 5 are supported on both sides, which increases the rigidity accordingly. This model is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. Media supplies for the end effector can be routed protected inside the robot structure.
Scope of delivery
- Robot mechanics incl. gearbox
- Mounting adapters for secondary-encoders
- Installation of drive technology and the secondary-encoders (to be provided free of charge in each case)
- Multi-hour, logged test run as final quality inspection
- Threaded protection caps
- Transport and packing instructions
Required accessories
- Set of parts for installing the drive technology. This set consists of, for example, a servo motor adapter, servo motor cable, transmission input pinion, plug board (usually on the base frame).
Note: The operating instructions and documentation on commissioning, service, maintenance, etc. are available in the password-protected download area of the respective product page (www.autonoxfinder.com).
Technical specifications
| Field of application: | Standard (not hygienic), CNC Robotics |
|---|---|
| Kinematics: | Serial |
| Translatory Degrees of Freedom (X,Y,Z): | 3 |
| Rotational Degrees of Freedom (α,ß,γ): | 3 |
| Nominal payload [kg|lbs]: | 30 | 66.1 |
| Supplementary load on the arm [kg|lbs]: | 10 | 22.0 |
| Working area-reach [mm|in]: | 1704 | 67.1 |
| Lubricants of the bearings: | Synthetic |
| Lubricants of the gearboxes: | Synthetic |
| Integrated media supply to the end effector possible: | Yes |
| Cleaning: | No high pressure |
| Protection class: | IP67 |
| Ambient temperature [°C|°F]: | 0 to +40 | +32 to +104 |
| Relative humidity level [%]: | 95 (free of condensation) |
| Mounting position: | Floor, Ceiling, Wall, Angle |
| Robot weight without drive engineering (esp. drive) [kg|lbs]: | 273 | 601.9 |
| Special features: | The use of secondary encoders is prepared for axes 1-6. This robot mechanics was developed for applications that demand high rigidity, good vibration damping and maximum precision. It is sealed against abrasive dusts, liquids, etc. and can be pressurized with sealing air. For patent law reasons not available and usable in the USA! |
Motor selection
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | AM8053-1KH1-0000 |
| M2 | AM8054-1MH1-0000 |
| M3 | AM8043-1HH1-0000 |
| M4 | AM8032-3EH1-0000 |
| M5 | AM8031-1DH1-0000 |
| M6 | AM8031-1DH1-0000 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | DMS2-142-0125-45-B15MP2-Q000-0 |
| M2 | DMS2-142-0160-45-B15MP2-Q000-0 |
| M3 | DMS2-100-0080-60-B15MP2-Q000-0 |
| M4 | DMS2-070-0024-60-B15MP2-Q000-1 |
| M5 | DMS2-070-0018-60-B15MP2-Q000-0 |
| M6 | DMS2-070-0018-60-B15MP2-Q000-0 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Motor |
Manufacturer article number (Specification) |
|---|---|
| M1 | 1FK2206-4AF10-1MB0 |
| M2 | 1FK2106-6AF10-1MB0 |
| M3 | 1FK2105-6AF10-1MB0 |
| M4 | 1FK7033-4CK71-1CB2 |
| M5 | 1FK7032-2AK71-1CB0 |
| M6 | 1FK7032-2AK71-1CB0 |
Suitable motors must be provided by the customer to autonox for assembly free of charge.
Download area
-
Signed in / logged in you will receive further documents:
With the download you accept the general terms of sale and supply, privacy policy and terms of use.
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
Note: If the documentation in the download area is not yet complete, please contact us (info@autonox.com).
LINKED Robotics
Accessories
Article number: MT_BGR00020307
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. It is equipped with a digital dial gauge and is used to read out the measured values in connection with other calibration devices. The measured values can be read out via RS232, USB and Digimatic. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
- Calibration device
Article number: MT_BGR00104096
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00101338
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105415
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105419
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105421
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: MT_BGR00105422
Description
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
Scope of delivery
This device is used to calibrate our robot mechanics. A defined motor position (encoder value) is assigned to the respective mechanical axis position. The calibration instructions can be found in the download area of the respective robot mechanics.
- Calibration device
- Mounting set (consisting of: Screw(s) and/or pin(s))
Article number: VKS_00021
Description
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics and is only suitable for transport by land.
Scope of delivery
- Carrier box incl. assembling/transport aid
Article number: VKS_00022
Description
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
This carrier box is necessary for transporting the robot mechanics. It can be used for transport by land, air and sea.
Scope of delivery
- Carrier box incl. assembling/transport aid
